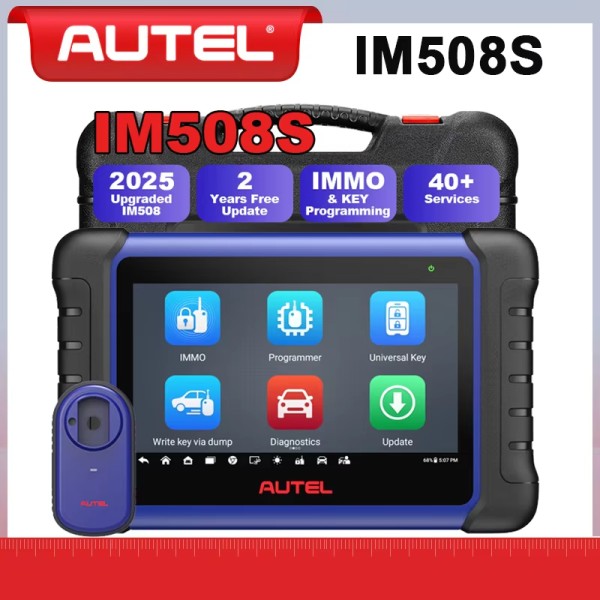

Autel MaxilM IM508S with XP200 Key Programmer Details:

The MaxilM IM508S is a portable, Android-powered diagnostic and key‑programming tablet designed for locksmiths and technicians who need fast, flexible service tools. Its powerful internal hardware and intuitive 7" touchscreen deliver smooth diagnostics, service procedures and key programming across a continuously growing list of U.S. and Asian vehicles. Use Smart Mode for step‑by‑step, automated key learning, or switch to Expert Mode for advanced manual control. Paired with the XP200 key programmer, the IM508S performs immobilizer and key functions — including Key/Remote Learning, basic EEPROM and MCU Read/Write — and supports programming of Autel IKEYS. Built for the shop and the field, the IM508S streamlines routine maintenance, advanced diagnostics and secure key programming in one all‑in‑one device.

Features:

• Ultra fast portable immobilizer and key programming device; a powerful combination of key programming, all system diagnostics and maintenance services

• All systems diagnostics for wide range of US, Asian and European vehicles, 1996 and newer

• Read PIN/CS (all key lost), key generation, key learning, remote learning

• Auto Scan function: locate system faults and retrieve DTCs

• Advanced Maintenance services including EPB, DPF, SAS, Oil reset, BMS, and TPMS sensor ID relearn

• IMMO ECU reset/adaptation, refresh/coding

• Read/Clear Codes

• Chip simulation via use of APB112

• View Freeze Frame and Live Data

• Save screenshots, review recorded data grams of live data streams

• Report cloud management

• Technical support via TeamView Quick Support program

A brand new IM508S device comes with a 1 year subscription that includes a year of free software updates.

IMMO Related Functions:

• IMMO ECU Reset/Adaptation and Refresh/Coding
• Key Generation
• Read PIN/CS (All Key Lost)
• Key/Remote Learning
• Transponder Read/Write
• EEPROM/MCU Read/Write
• Backup/Restore IMMO Data


Full System Diagnostics:

• Access and perform OE-Level diagnosis included but not limited to: PCM, ECM, EPS, PDM, BCM, TPM, SCCM and more.
• Covers all major systems like ABS, SRS, Engine, Transmission, Break System and more
• Read Codes: detailed information of DTC records including manufacturer-specific codes, pending & permanent codes

• Clear Codes: Clear codes, reset monitors and turn off warning lights
• Live data: Retrieves and displays live data and parameters including misfire, engine RPM, transmission fluid temperature, etc.
• Freeze Frame: Retrieve parameters when recording the DTC for better diagnosis
• ECU Information: provides retrieved ECU information in detail

• Control Units: displays a selection menu of all available control units of the vehicle

Over 40 service functions, not limited to:

• Oil Reset: Reset Engine Oil Life System & service intervals after engine oil is changed
• EPB: Rest parking break pads after replacement.
• SAS: Reset the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM
• BMS: Register the battery replacement, etc.
• ABS Bleed: Helps easily vent air from the ABS system, make ABS brake more sensitive
• Injector Coding: Coding injectors after replacement
• Gearbox Reset: Helps complete gearbox self-learning and improve gear shift quality

Examples of features based on vehicle manufacturer:

BMW (Pioneering Smart Mode):
-FEM/BDC IMMO system - automatically saves data & prevents car being locked
-ECU programming & fixing
-B48/B58 Engine -Read ISN via OBD (Chassis F)
-Supports Read/Write ISN for most engines when paired with G-Box

VW/Audi (Pioneering Smart Mode & Advanced Mode):
-Auto detect IMMO types & read IMMP data, auto select Key Learning process
-VAG 4th Gen. CAN IMMO via OBD
-Add MQB Blade & All Key Lost via OBD
-MQB Key Programming, 48 Transponder (96-Bit) Key Copy, A6 Full Lost and more

Volvo:
-Semi-Smart Key All Key Lost via OBD (prevents car being locked and resume learning after learning process is interrupted)

Ford/Mazda:
-All-Model Key Learning (Bypass PIN code)
-Add Key/All Key Lost via OBD

Chrysler:
-Key Learning (Bypass PIN code)
-Add Key/All Key Lost via OBD

MaxilM IM508S Specifications:

Operating System: Android 11
Processor: Cortex®-A55 (1.8 GHz)
Memory: 4G + 64 GB via Micro SD card
Display: 7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity: Mini USB 2.0, OBD Cable, Wi-Fi (required for key programming and diagnostics), Micro SD card (supports up to 64 GB)
Power: 3.7 V/5000 mAh lithium-polymer battery. Charge with 5V/1.5A power supply
Dimensions (W x H x L): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5mm (1.4”)
Net Weight: 788 g (2.42 lbs)
Protocols: ISO9141-2, ISO14230-2,ISO15765, K/LLine, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Package Contents:

1 x MaxilM IM508S Table
1 x XP200 Key Programmer
1 x Main Cable
1 x Mini USB Cable
1 x Power Adapter
1 x AAC001
1 x APB001 (EEPROM Adapter)
1 x APB002 (68HC908 Adapter)
1 x APA002 (EEPROM Socket)
1 x APA001 (EEPROM Clamp Integrated MC9S12 Cable)
1 x KIA-10 Adapter
1 x KIA-20 Adapter
1 x Honda-3 Adapter
1 x Mazda-17 Adapter
1 x Quick Reference Guide
1 x Packing List
1 x Soft Cloth
1 x Carrying Case (504x360x133mm / 8.07x14.17x5.24in)
