Autel G-BOX3 Key Programming Tool

The Autel G-BOX3 is an adapter compatible with Autel’s MaxiIM IM608 and MaxiIM IM508 tablets (with the purchase of XP400Pro programmer) that aids in the programming of keys to Mercedes DAS3 CAN EIS/EXS vehicles in an ALL Keys Lost situation. The G-Box3 also supports DME/DDE ISN Reading and Writing in Boot Mode on applicable BMW vehicles. Bench Method is also supported. All Keys Lost password calculations are approximately 4x to 8x faster.

Key Features

• Faster password calculation for Benz All Key Lost
• 8X times faster password calculation for W172, W204, W207
• 4X times faster password calculation for W209, W211
• No more repeated insertions and removals of IR simulator for 10 types of EIS
• Passport reading for 9 type EIS when all keys lost on vehicle
• BMW DME/DDE ISN reading for 20 types (EDC17, MEVD17, MSV90, MSD87, etc)
• VAG ECM IMMO data reading & data synchronization for 18 types (MQB EDC17, MED17, etc)
• Engine ECU reading/writing for BOSCH MD1/MG1(VAG,BMW,PSA,OPEL,etc)
• XP400 Pro may be required for certain functions

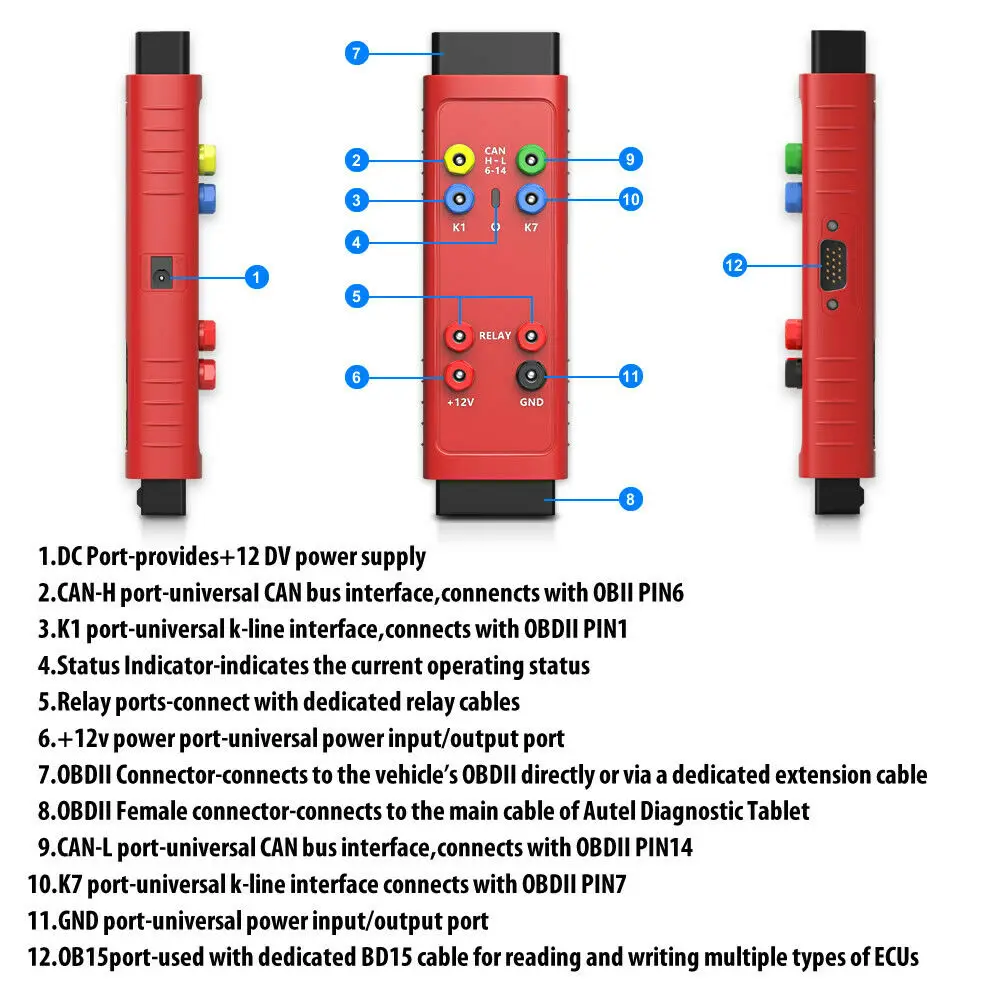

Autel G-BOX3 Product Display:

1.DC Port - Provides +12V DC power supply.
2. CAN-H Port - Universal CAN bus interface, connects with OBDII Pin6
3. K1 Port - Universal K-Line interface, connects with OBDII Pin1
4. Status Indicator - Indicates the current operating status
5. Relay Ports - Connect with dedicated relay cables
6. +12V Power Port - Universal power input/ output port
7. OBDII Connector - Connects to the vehicle's OBDII directly or via a dedicated extension cable
8. OBDII Female Connector - Connects to the main cable of Autel diagnostic tablet
9. CAN-L Port - Universal CAN Bus interface, connects with OBDII Pin14
10. K7 Port - Universal K-Line interface, connects with OBDII Pin7
11. GND Port - Universal power input/ output port
12. DB15 Port - Used with dedicated DB15 cable for reading and writing multiple types of ECUs

Why Buy Autel G-BOX3 --- Small is Smart!

1. fit for MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.
8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

2. fit for MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR
W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3. fit for MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS
EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

4. fit for MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE

How to Use Autel G-BOX3 Work?

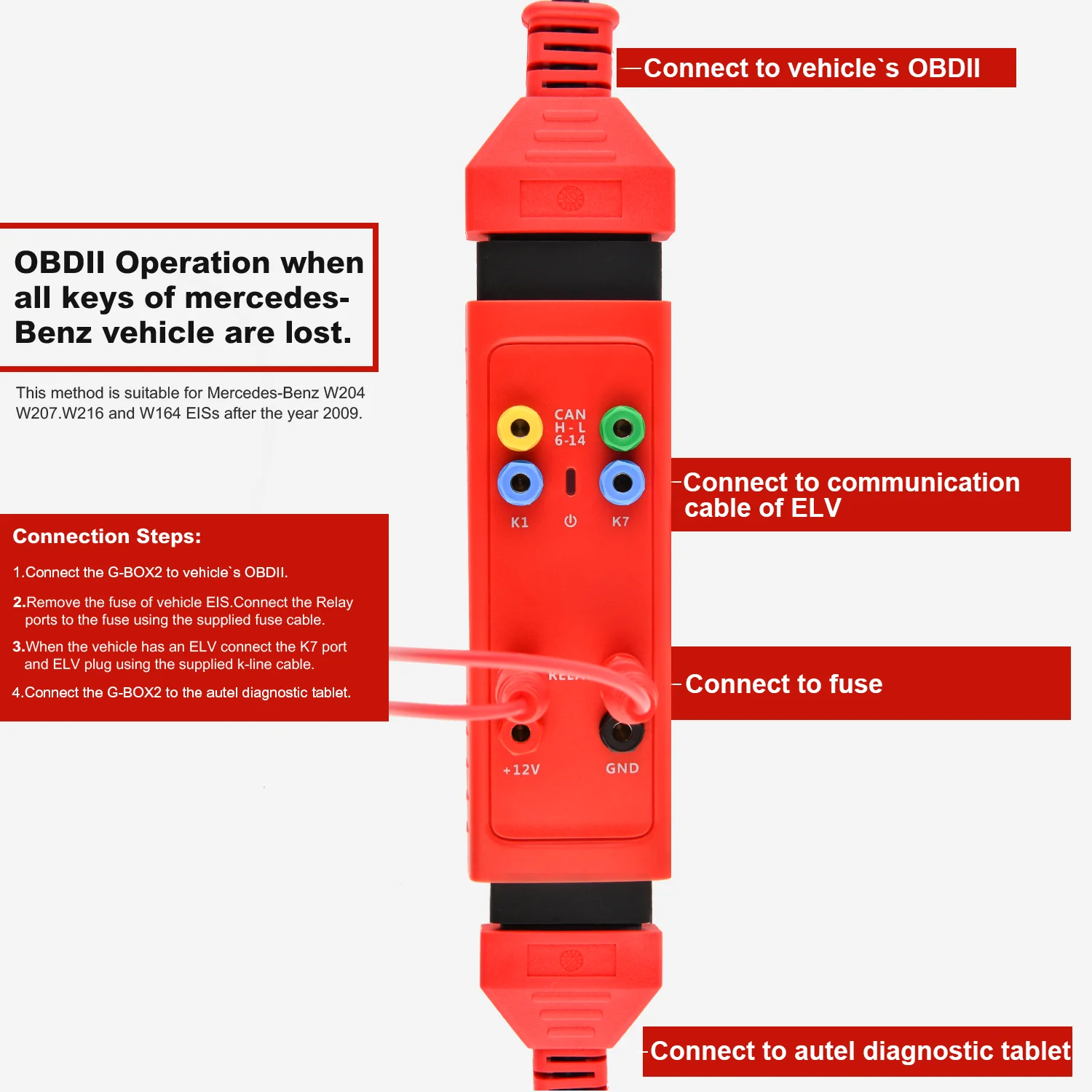

1. OBDII Operation when all keys for Mercedes-Benz vehicle are lost
Use OBDII access on for Mercedes=Benz vehicles manufactured after 2009 with W204, W207, W216 and W164 EISs

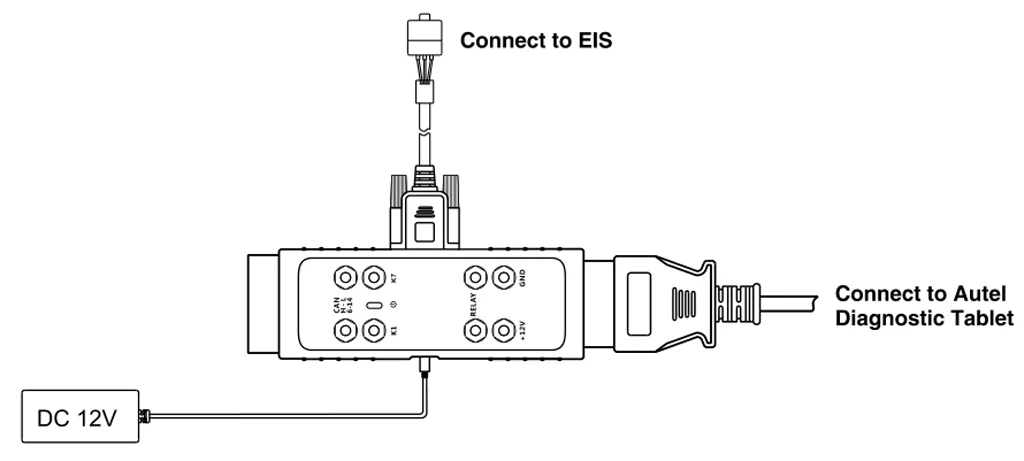

How to Connect Autel G-BOX3 Step by Step

1. Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box using a power adapter (DV 12V)
3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

How to do via OBD When All Keys fit for Mercedes-Benz Vehicle Are Lost

This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.

23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.

How to do on Bench When All Keys for Mercedes-Benz Vehicle are Lost

This Method is suitable for Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet

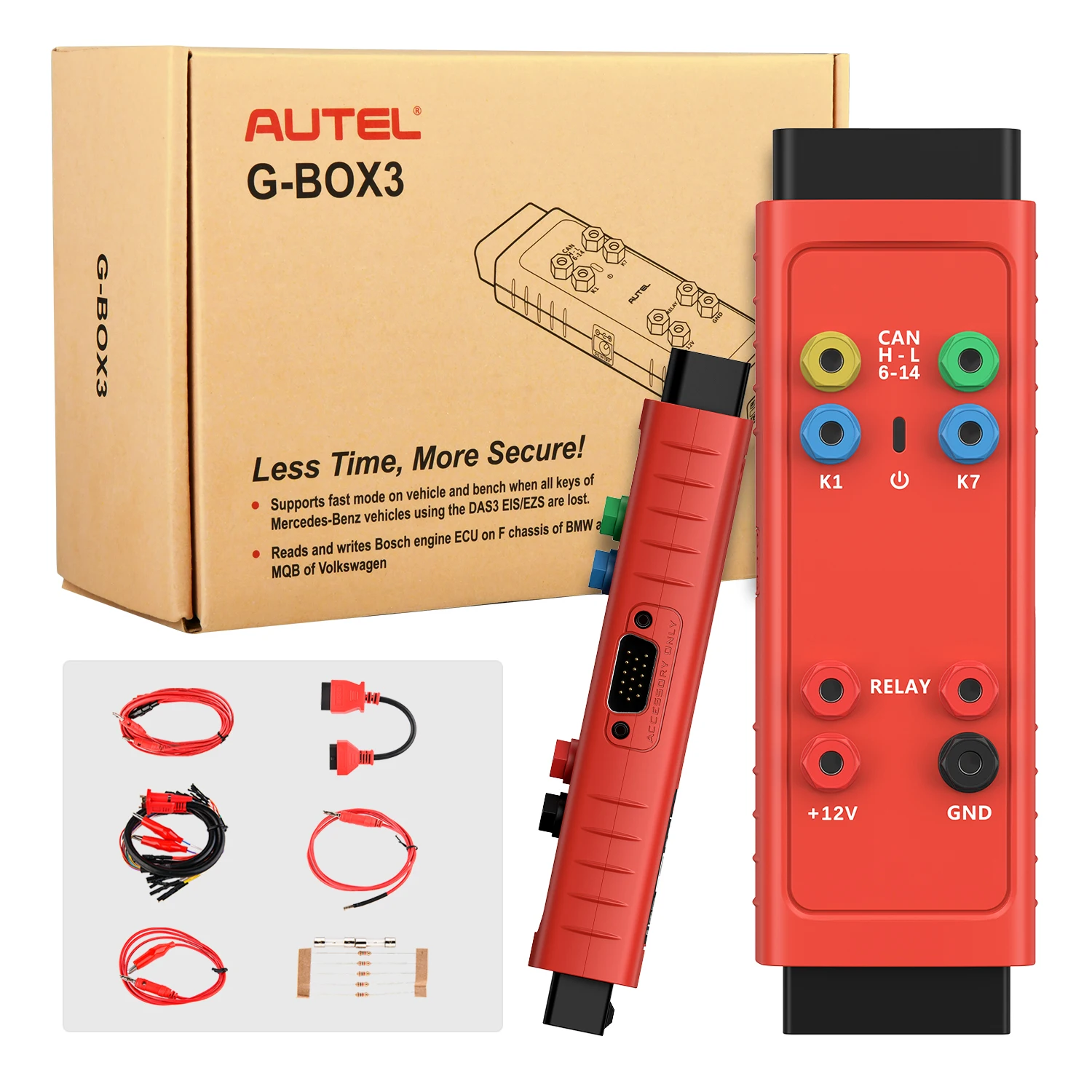

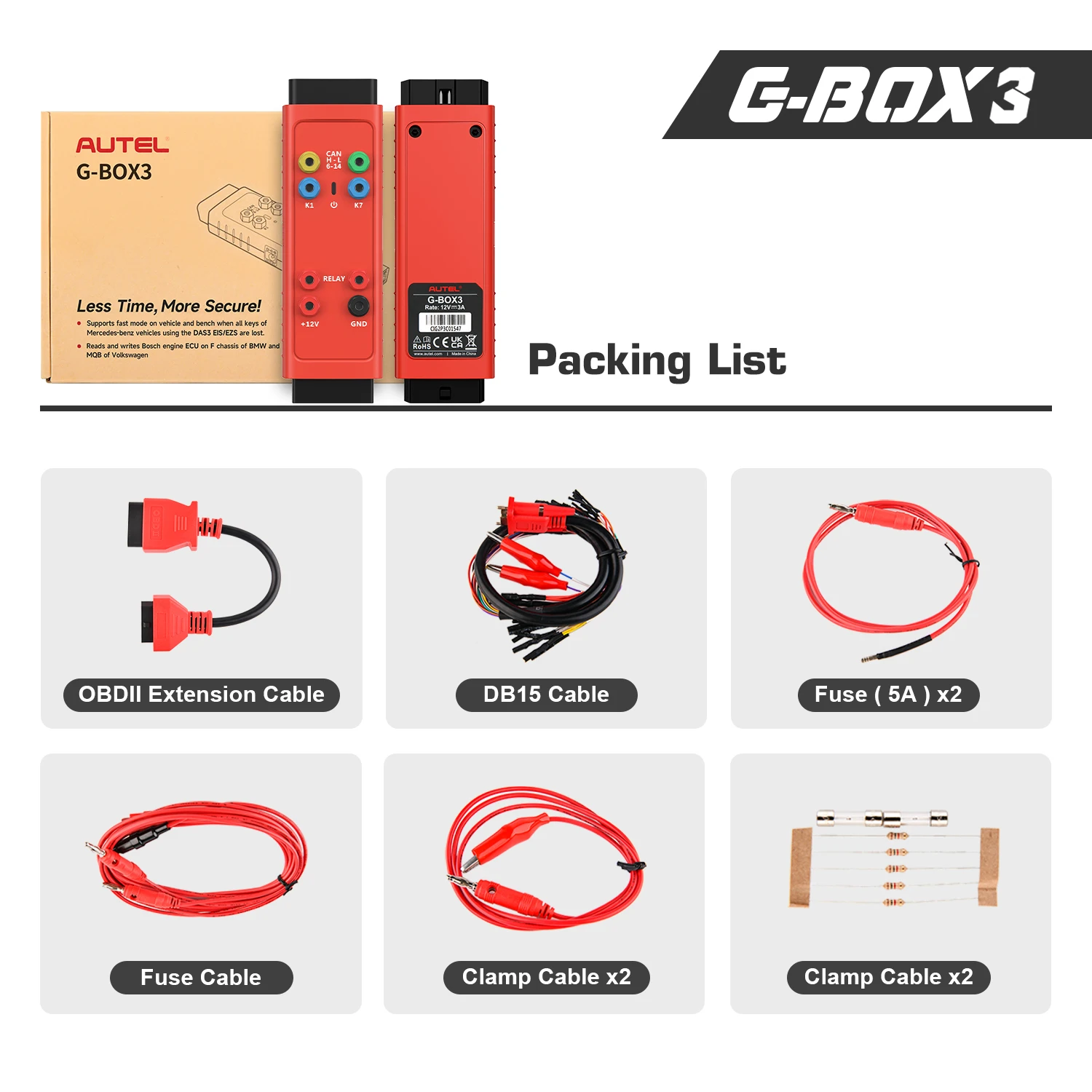

Autel G-BOX3 Package Included:

1pc x Autel G-BOX3
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide
