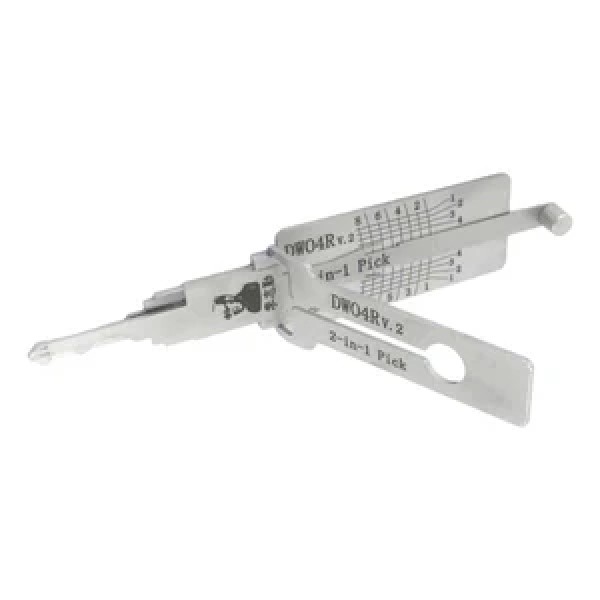

Original Lishi 2-in-1 pick and decoder tool engineered for the DW04R / DW05R / DAE-3DP1 keyway. Stainless steel construction with 4 depth settings and tool spaces 1–8 for door and trunk lock work. Compatible with Chevrolet Aveo, Daewoo Nubira, Pontiac G3, Saturn Vue, and Suzuki Forenza/Reno 1997–2011.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔧 Technical Specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Keyway DW04R / DW05R / DAE-3DP1 / DW04RAP / DW05RAP

Material Stainless Steel / Anti-Glare Stainless Steel

Depths 1–4

Tool Spaces 1–8

Factory Original (OEM)

Logo With Logo

Return Policy 1 Year Free Return



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ Compatibility Checklist

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ Chevrolet Aveo (2004 – 2011)

✅ Chevrolet Optra (2004 – 2007)

✅ Daewoo Nubira (1997 – 2004)

✅ Pontiac G3 (2009 – 2010)

✅ Pontiac Wave — Canada (2005 – 2010)

✅ Saturn Vue (2008 – 2010) — verify keyway match

✅ Suzuki Forenza (2004 – 2008)

✅ Suzuki Reno (2005 – 2008)



⚠️ Compatible exclusively with DW04R / DW05R / DAE-3DP1 keyway — verify your keyway before purchase.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔑 How to Use

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



1. Identify the DW04R / DW05R keyway on the vehicle

2. Select the appropriate tool space (1–8) based on keyway configuration

3. Insert the Lishi tool into the keyway and engage the picking mechanism

4. Elevate pins to the shear line using controlled picking motion

5. Decode the lock using the integrated decoder — verify 4 depth settings

6. Test the resulting key cut against the lock



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 What's Included

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



• Original Lishi 2-in-1 Pick & Decoder Tool (DW04R / DW05R)

• Factory logo stamped

• 1-Year Free Return Policy



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🚚 Shipping & Warranty

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ Free shipping on orders over $100

✅ Delivery in 5–7 days

✅ 1-Year Free Return Policy

✅ Factory original — genuine Original Lishi brand



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

❓ Frequently Asked Questions (FAQ)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Q1: What vehicles are compatible with the DW04R / DW05R keyway?

A: The DW04R / DW05R covers Chevrolet Aveo (2004–2011), Chevrolet Optra (2004–2007), Daewoo Nubira (1997–2004), Pontiac G3 (2009–2010), Pontiac Wave in Canada (2005–2010), Saturn Vue (2008–2010), Suzuki Forenza (2004–2008), and Suzuki Reno (2005–2008).



Q2: What is the difference between DW04R and DW05R?

A: Both keyways are closely related — the DW04R and DW05R are variants of the same DAE-3DP1 keyway family, covering similar vehicles with minor regional differences. This Lishi tool handles both variants.



Q3: Is this tool available in anti-glare finish?

A: Yes — the DW04R / DW05R is available in either standard stainless steel or anti-glare stainless steel to reduce light reflections during use.



Q4: Does this tool work on ignition locks or only door/trunk?

A: The DW04R / DW05R Lishi tool is designed for door and trunk lock picking and decoding. For ignition lock work on these vehicles, a different Lishi tool may be required.



Q5: Is this an original Lishi tool?

A: Yes — this is a genuine Original Lishi tool manufactured by Lishi Tools Ltd., not an aftermarket replica.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
