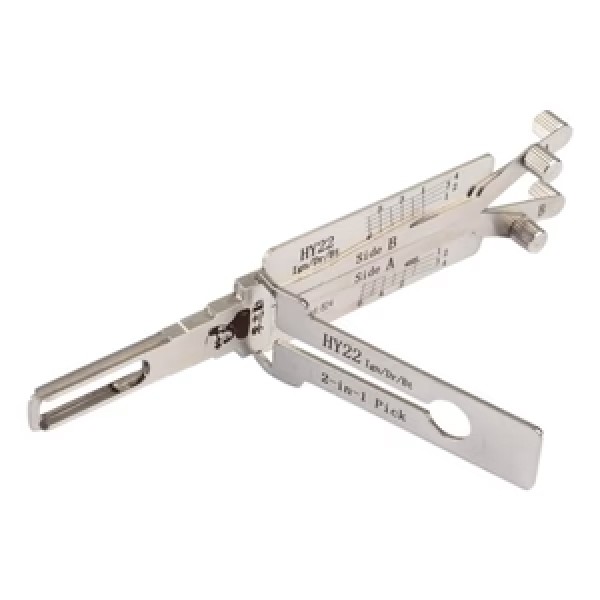

Original Lishi 2-in-1 pick and decoder for HY22 Quad Lifter Hyundai pin

tumbler lock. The Quad Lifter designation indicates this tool uses a four-lift

mechanism — lifting all four pins simultaneously during picking for efficient

operation on compatible Hyundai locks. HY22 is the Hyundai profile for this

specific lock application. Combines picking and decoding in one professional-

grade automotive locksmith instrument for Hyundai lock service with quad lifter

mechanism.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔧 Technical Specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Brand Original Lishi

Model HY22 Quad Lifter

Type 2-In-1 Pick and Decoder

Lock Type HY22 Pin Tumbler (Hyundai)

Mechanism Quad Lifter — 4-pin simultaneous lift

Application Automotive Locksmith, Hyundai Vehicles

Condition New

SKU Lishi-T165



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ Compatibility

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ Hyundai vehicles with HY22 cylinder (various Hyundai models/years)

✅ HY22 profile for specific Hyundai lock applications

✅ Quad Lifter mechanism — efficient 4-pin simultaneous lifting

✅ Note: Hyundai-specific — not for use on non-Hyundai vehicles



⚠️ Quad Lifter mechanism — designed for specific 4-pin Hyundai locks.

⚠️ HY22 is a distinct Hyundai profile — do NOT confuse with HY11, HY15, HY16, HY17, HYN11, HYN14R, or K5.

⚠️ For professional use only — requires locksmith training.

⚠️ Hyundai-specific — not interchangeable with other Hyundai profiles or other brands.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔑 How to Use

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



1. Identify the lock keyway — confirm HY22 profile (check keyway shape and code).

2. The Quad Lifter mechanism lifts all 4 pins simultaneously — follow designated motion.

3. Insert the Lishi 2-in-1 tool with picks oriented for quad lifter mechanism.

4. The quad lifter design allows efficient picking with single motion on compatible locks.

5. Use the pick section to lift all pins to the shear line.

6. Switch to the decoder section to read pin depths and obtain the key code.

7. Generate or cut a key based on the decoded information.

(Refer to official Lishi training materials for HY22 Quad Lifter-specific techniques.)



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 What's Included

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



• 1× Original Lishi 2-In-1 Pick and Decoder (HY22 Quad Lifter)

• Protective sleeve packaging



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🚚 Shipping & Warranty

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ Free shipping on orders over $100

✅ 5–7 business days delivery

✅ 1-Year Free Return policy



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

❓ Frequently Asked Questions (FAQ)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Q1: What is a Quad Lifter mechanism?

A: A Quad Lifter mechanism lifts all four pins simultaneously with a single motion — as opposed to standard lifter designs that lift pins individually or in pairs. This can make the picking process more efficient on compatible locks. The Quad Lifter design is specific to certain Hyundai profiles including HY22.



Q2: How is HY22 Quad Lifter different from HU92 Twin Lifter (Product 157)?

A: HY22 Quad Lifter (this product) is a Hyundai profile with a 4-pin quad lifter mechanism. HU92 Twin Lifter (Product 157, $39) is a Ford profile with a 2-pin twin lifter mechanism. They are different brands, different profiles, and different lifter mechanisms — not interchangeable.



Q3: How is HY22 different from other Hyundai profiles like HY11, HY15, HY16, HY17, HYN11, or HYN14R?

A: HY22, HY11, HY15, HY16, HY17, HYN11, and HYN14R are all distinct Hyundai Motor Group profiles. They are NOT interchangeable — each requires a specific Lishi tool. HY22 features the Quad Lifter mechanism (4-pin simultaneous lift). The others use standard lifter designs. Always verify your lock's profile code.



Q4: Can I use a standard Hyundai tool on a HY22 lock if I don't have the Quad Lifter version?

A: HY22 requires the Quad Lifter tool — the quad lifter mechanism is specifically designed for the HY22 lock geometry. A standard Hyundai tool would not be compatible with the HY22 profile. Always confirm the profile code and use the specific tool for that profile.



Q5: Which Hyundai vehicles use the HY22 lock profile?

A: HY22 is used in specific Hyundai model applications. The exact vehicle applications vary by year. Always verify the profile code on your lock — if it shows HY22, this is the correct tool.



Q6: Do I need special training to use this tool?

A: Yes — this is a professional locksmith tool. Basic lock picking knowledge and familiarity with pin tumbler mechanisms is required. Quad Lifter tools may require specific technique for the simultaneous 4-pin lift motion. Original Lishi offers official training programs.



Q7: Can this tool cut keys directly?

A: No — this is a 2-in-1 pick and decoder. It reads pin depths to help generate a key code, which can then be used to cut a new key. It does not cut keys directly.



Q8: What is the return policy?

A: Locksmith Mall offers a 1-Year Free Return if the tool does not match your lock type or arrives defective. Verify lock compatibility (confirm HY22) before ordering.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
