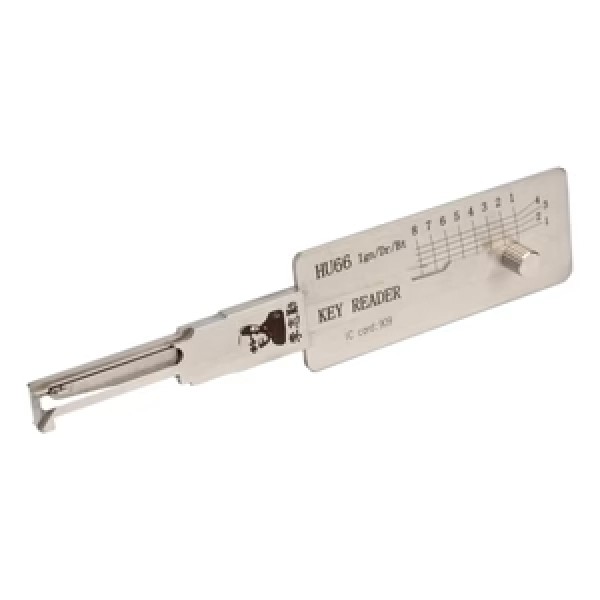

Original Lishi reader and decoder for HU66, HU66-P, and HU-HAAP-1 Volkswagen/Audi

pin tumbler lock cylinders. IMPORTANT: This is a READER AND DECODER ONLY — it

reads pin depths and extracts key codes but does NOT pick locks. For picking

VW/Audi HU66 locks, you need a separate Lishi pick tool. Covers three VW/Audi

profiles in one decoding instrument for professional automotive locksmiths

working on Volkswagen and Audi vehicles.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔧 Technical Specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Brand Original Lishi

Models Covered HU66 (VW), HU66-P (VW), HU-HAAP-1 (VW/Audi)

Type Reader and Decoder (No Picking Function)

Lock Type HU66 / HU66-P / HU-HAAP-1 Pin Tumbler (VW/Audi)

Application Automotive Locksmith, Volkswagen / Audi Vehicles

Note Decoder only — does NOT pick. Separate pick tool required.

Condition New

SKU Lishi-T097



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ Compatibility

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ HU66: Volkswagen vehicles with HU66 cylinder (various VW models/years)

✅ HU66-P: Volkswagen vehicles with HU66-P variant cylinder

✅ HU-HAAP-1: Audi/Volkswagen vehicles with HU-HAAP-1 cylinder

✅ One tool covers three VW/Audi HU66 profiles

✅ Note: VW/Audi-specific — not for use on non-VW/Audi vehicles



⚠️ READER AND DECODER ONLY — this tool does NOT pick locks.

⚠️ You need a separate pick tool for HU66/HU66-P/HU-HAAP-1 to use this decoder.

⚠️ For professional use only — requires locksmith training.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔑 How to Use

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



1. You must already have a separate Lishi pick tool for HU66/HU66-P/HU-HAAP-1 locks.

2. Use your pick tool to lift pins to the shear line (this decoder does not pick).

3. Insert the Lishi reader/decoder into the keyway alongside or after picking.

4. Read the pin depths using the decoder's gauge markings.

5. Record the key code based on the decoded pin depths.

6. Generate or cut a key based on the decoded information.

(This is a decoder — it does not replace a pick tool.)

(Refer to official Lishi training materials for VW/Audi decoder techniques.)



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 What's Included

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



• 1× Original Lishi Reader and Decoder (HU66 / HU66-P / HU-HAAP-1)

• Protective sleeve packaging

• Note: Picking tool not included — decoder/reader only



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🚚 Shipping & Warranty

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



✅ Free shipping on orders over $100

✅ 5–7 business days delivery

✅ 1-Year Free Return policy



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

❓ Frequently Asked Questions (FAQ)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



Q1: What is the difference between this and a Lishi 2-in-1 tool?

A: A Lishi 2-in-1 tool (like HD74, HU101, etc.) has both pick and decoder functions combined in one instrument. This Product 162 is a reader and decoder ONLY — it cannot pick locks. To use this decoder, you must already own a separate Lishi pick tool for HU66/HU66-P/HU-HAAP-1 locks.



Q2: What is the HU66 profile?

A: HU66 is a Volkswagen/Audi pin tumbler lock profile used in various VW Golf, Jetta, Passat, Audi A3, A4, and other VW/Audi models across different years. HU66-P and HU-HAAP-1 are variants of the HU66 profile used in specific VW/Audi applications. All three are VW/Audi-specific profiles.



Q3: Do I need a separate pick tool to use this decoder?

A: Yes — this is a reader and decoder. You need a separate Lishi pick tool (with picks) for HU66/HU66-P/HU-HAAP-1 locks to lift the pins before using this decoder to read the depths. The decoder alone cannot pick.



Q4: Can I use this on any VW or Audi vehicle?

A: This tool works on HU66, HU66-P, and HU-HAAP-1 profile VW/Audi locks. Not all VW/Audi vehicles use HU66 — some use different profiles. Always verify that your lock uses HU66, HU66-P, or HU-HAAP-1 before purchasing.



Q5: What is the difference between HU66, HU66-P, and HU-HAAP-1?

A: HU66 is the standard VW/Audi profile. HU66-P is a variant used in certain VW applications. HU-HAAP-1 is another variant found in specific Audi vehicles. All three are related HU66-family profiles for VW/Audi. This single tool covers all three variants.



Q6: Do I need special training to use this tool?

A: Yes — this is a professional locksmith tool. Basic lock picking knowledge and familiarity with VW/Audi pin tumbler mechanisms is required. The decoder function requires proper technique. Original Lishi offers official training programs for VW/Audi profiles.



Q7: Can this tool cut keys directly?

A: No — this is a reader and decoder. It reads pin depths to help generate a key code, which can then be used to cut a new key. It does not cut keys directly and does not pick locks.



Q8: What is the return policy?

A: Locksmith Mall offers a 1-Year Free Return if the tool does not match your lock type or arrives defective. Verify lock compatibility (confirm HU66/HU66-P/HU-HAAP-1) before ordering.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
